6 Repairable Systems Analysis

6.1 Introduction

Unlike life data analysis (Chapter 3), which focuses on the time to first failure of non-repairable components, Repairable Systems Analysis (Ascher and Feingold 1984; Meeker and Escobar 1998) models the entire sequence of recurring failures on a single system or fleet. This chapter covers the foundational theory and the ReliaGrowR tools for fitting models, computing fleet-level exposure, and estimating the Mean Cumulative Function.

6.2 Learning Objectives

By the end of this chapter, you will be able to:

Define the distinction between repairable and non-repairable systems.
Explain the Homogeneous Poisson Process (HPP) and Non-Homogeneous Poisson Process (NHPP).
Describe the Power Law Process and its parameters.
Fit and interpret the Crow-AMSAA model using nhpp() from ReliaGrowR.
Apply the Piecewise NHPP model to detect changes in failure behavior.
Compute fleet-level exposure using exposure().
Estimate the Mean Cumulative Function (MCF) using mcf().
Forecast future failure counts from a fitted Power Law model.

The ReliaGrowR package (Govan 2024) provides functions for repairable systems analysis in R.

library(ReliaGrowR)

6.3 Repairable vs Non-Repairable Systems

A non-repairable system is discarded after failure and replaced with a new, statistically identical unit. The unit of analysis is the time to first failure. Weibull analysis applies.

A repairable system is restored to service after each failure and continues accumulating operating time. The unit of analysis is the sequence of inter-failure times or cumulative failure counts over the system’s life.

Two repair assumptions are common:

Repair type	Description	Model
Perfect repair	As-good-as-new after each repair	Renewal process
Minimal repair	As-bad-as-old — failure fixed, nothing else changed	NHPP

Most field maintenance data best fits the minimal repair assumption, making NHPP the standard framework.

The recurrence rate (intensity function) $\rho(t)$ is the instantaneous rate of failure occurrence at time $t$:

\[\rho(t) = \frac{d\,E[N(t)]}{dt}\]

6.4 Failure Processes: HPP and NHPP

Homogeneous Poisson Process (HPP)

The HPP assumes a constant failure rate $\lambda$ throughout the system’s life:

\[E[N(t)] = \lambda t \qquad \rho(t) = \lambda \qquad \text{MTBF} = 1/\lambda\]

The HPP is appropriate when failures occur at random with no trend.

Non-Homogeneous Poisson Process (NHPP)

The NHPP allows the intensity function to change with time:

\[\rho(t) = \frac{d\Lambda(t)}{dt}\]

When $\rho(t)$ increases, the system is deteriorating; when it decreases, the system is improving.

t <- seq(1, 100, by = 1)

# HPP (constant rate)
hpp_intensity  <- rep(0.05, length(t))

# NHPP Power Law scenarios
nhpp_improving  <- 0.01 * 0.7 * t^(0.7 - 1)   # beta = 0.7
nhpp_stable     <- 0.05 * 1.0 * t^(1.0 - 1)   # beta = 1.0
nhpp_worsening  <- 0.002 * 1.5 * t^(1.5 - 1)  # beta = 1.5

ylim_max <- max(c(hpp_intensity, nhpp_improving, nhpp_stable, nhpp_worsening)) * 1.1

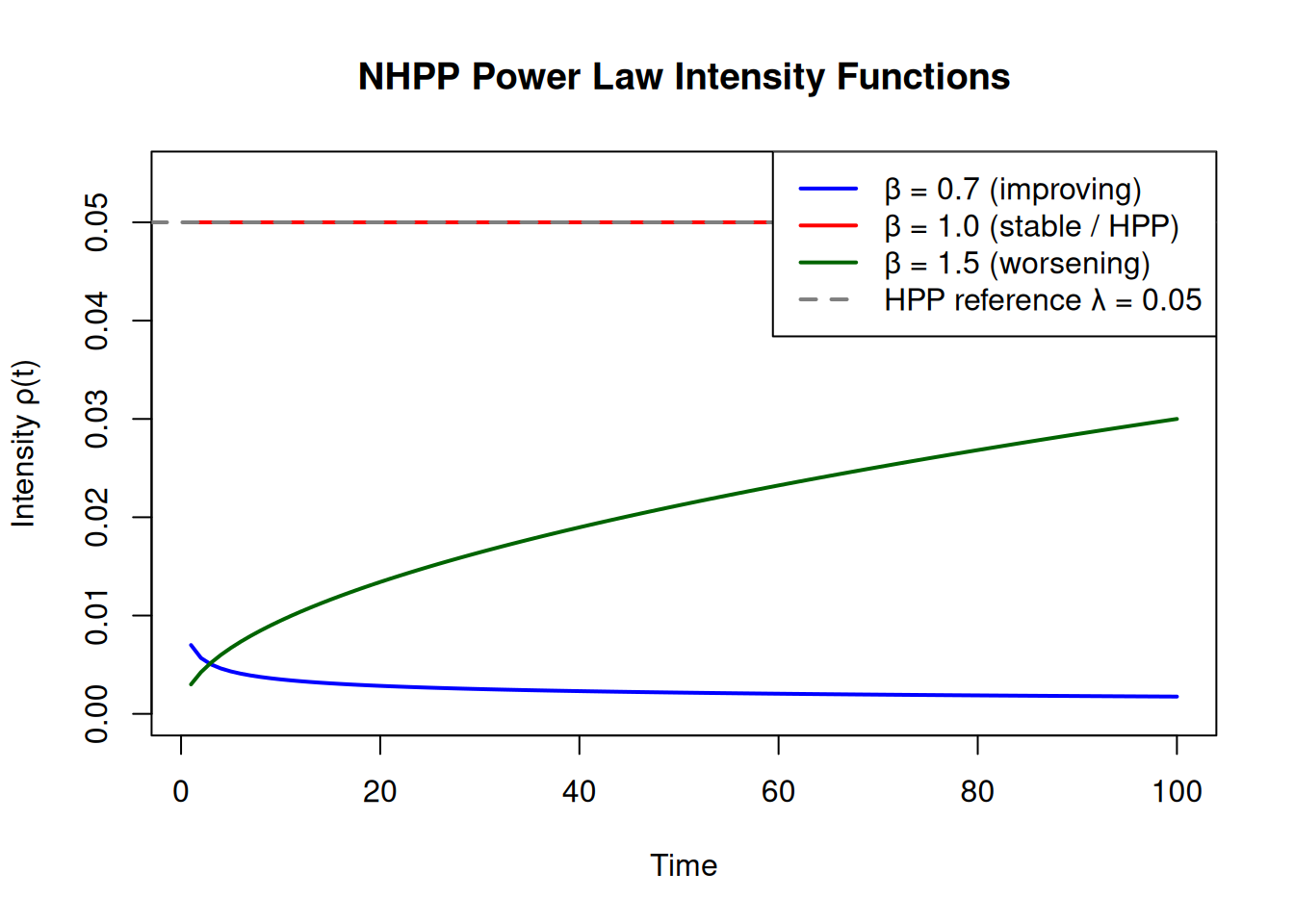

plot(t, nhpp_improving, type = "l", col = "blue", lwd = 2,
     ylim = c(0, ylim_max),
     xlab = "Time", ylab = "Intensity ρ(t)",
     main = "NHPP Power Law Intensity Functions")
lines(t, nhpp_stable,    col = "red",       lwd = 2)
lines(t, nhpp_worsening, col = "darkgreen", lwd = 2)
abline(h = 0.05, col = "gray50", lwd = 2, lty = 2)
legend("topright",
       legend = c("β = 0.7 (improving)", "β = 1.0 (stable / HPP)",
                  "β = 1.5 (worsening)", "HPP reference λ = 0.05"),
       col = c("blue", "red", "darkgreen", "gray50"),
       lwd = 2, lty = c(1, 1, 1, 2))

6.5 The Power Law Process

The Power Law Process is the most widely used NHPP for repairable systems:

\[E[N(t)] = \lambda t^{\beta} \qquad \rho(t) = \lambda \beta t^{\beta-1}\]

Parameter interpretation:

$\lambda > 0$ — scale parameter; overall magnitude of the failure rate.
$\beta < 1$: decreasing intensity (system improving).
$\beta = 1$: constant intensity = HPP.
$\beta > 1$: increasing intensity (system deteriorating).

The instantaneous MTBF at time $t$:

\[\text{MTBF}(t) = \frac{1}{\rho(t)} = \frac{1}{\lambda\beta\,t^{\beta-1}}\]

Maximum likelihood estimates given $n$ failures at times $t_1 < \cdots < t_n$ over total time $T$:

\[\hat{\beta} = \frac{n}{\displaystyle\sum_{i=1}^{n} \ln(T/t_i)} \qquad \hat{\lambda} = \frac{n}{T^{\hat{\beta}}}\]

Review

A repairable system is observed to have an increasing failure rate over time. Which model is most appropriate?

Answer

NHPP Power Law with $\beta > 1$. An increasing intensity function is characteristic of a deteriorating system. HPP (constant rate) cannot capture this trend.

6.6 NHPP Analysis with nhpp()

The nhpp() function fits the Power Law Process (Crow-AMSAA model) (Crow 1975) to cumulative failure data by maximum likelihood, returning estimates of $\lambda$ and $\beta$.

A curve that bends downward (concave) indicates $\hat{\beta} < 1$ — improving system. Upward bending (convex) indicates $\hat{\beta} > 1$ — deteriorating system.

times    <- c(500, 1200, 2100, 3300, 4800, 6500, 8400, 10500, 12800, 15000)
failures <- c(3, 4, 4, 5, 4, 3, 3, 3, 2, 2)

fit <- nhpp(time = times, event = failures)

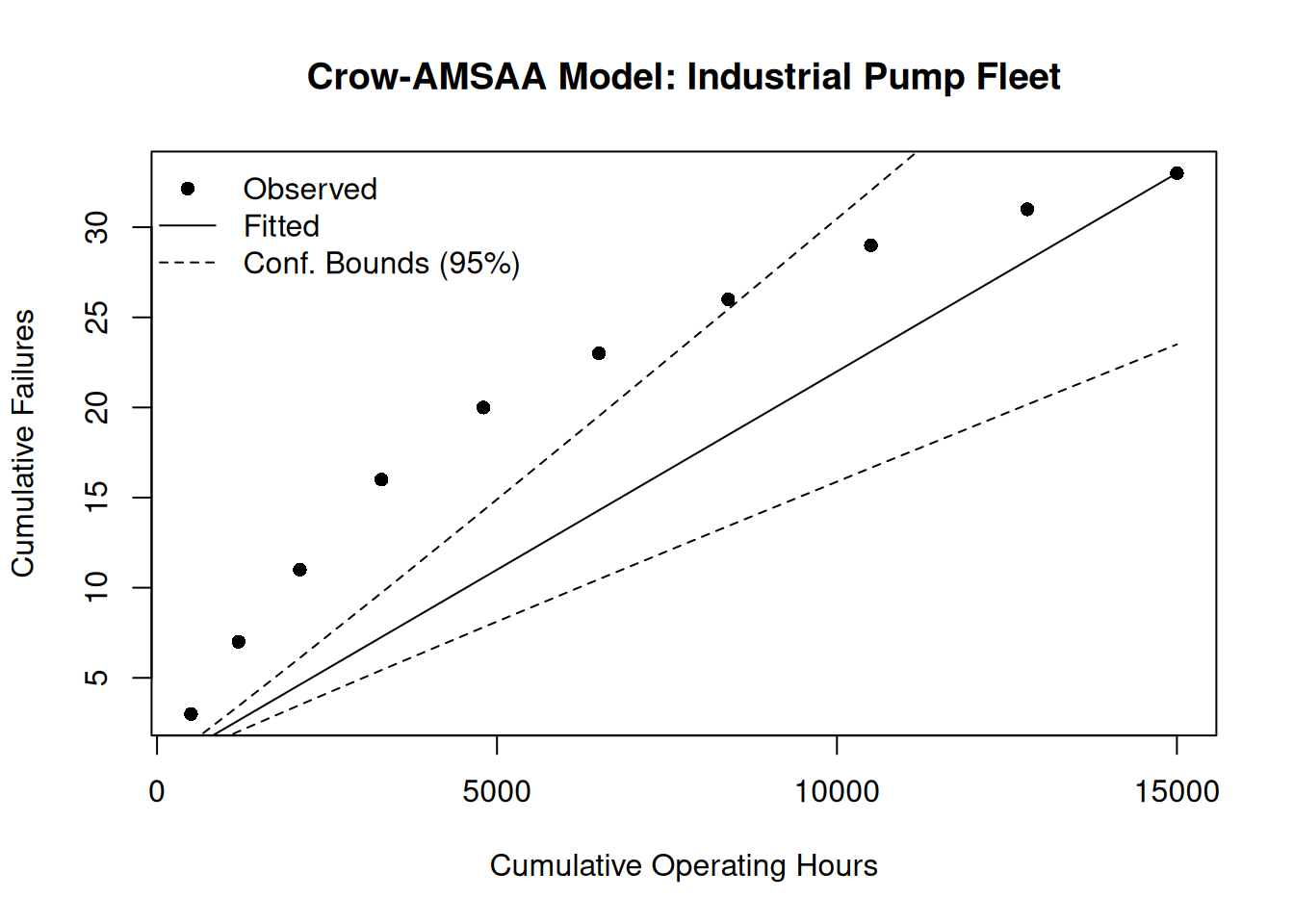

plot(fit,
     main = "Crow-AMSAA Model: Industrial Pump Fleet",
     xlab = "Cumulative Operating Hours",
     ylab = "Cumulative Failures")

The concave curve and $\hat{\beta} < 1$ indicate the pump fleet’s failure rate is decreasing — a favorable operating regime.

Try It

A compressor fleet recorded these cumulative operating hours and failure counts. Fit a Power Law model using nhpp() with method = "LS".

times    <- c(1000, 2500, 4000, 5500, 8000)
failures <- c(2, 3, 4, 5, 5)
# fit <- nhpp(time = times, event = failures, method = "LS")
# plot(fit)

Solution

times    <- c(1000, 2500, 4000, 5500, 8000)
failures <- c(2, 3, 4, 5, 5)
fit <- nhpp(time = times, event = failures, method = "LS")

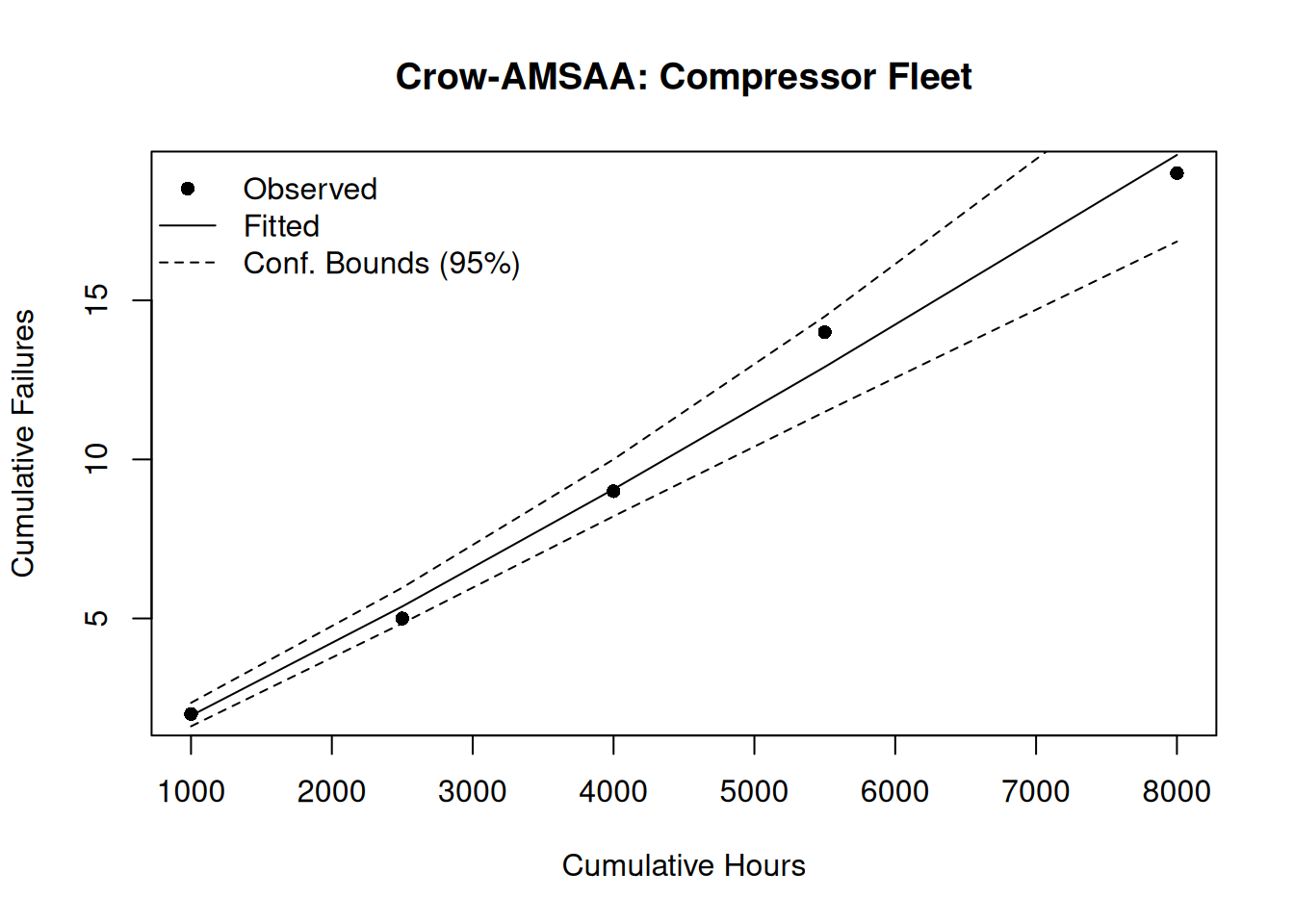

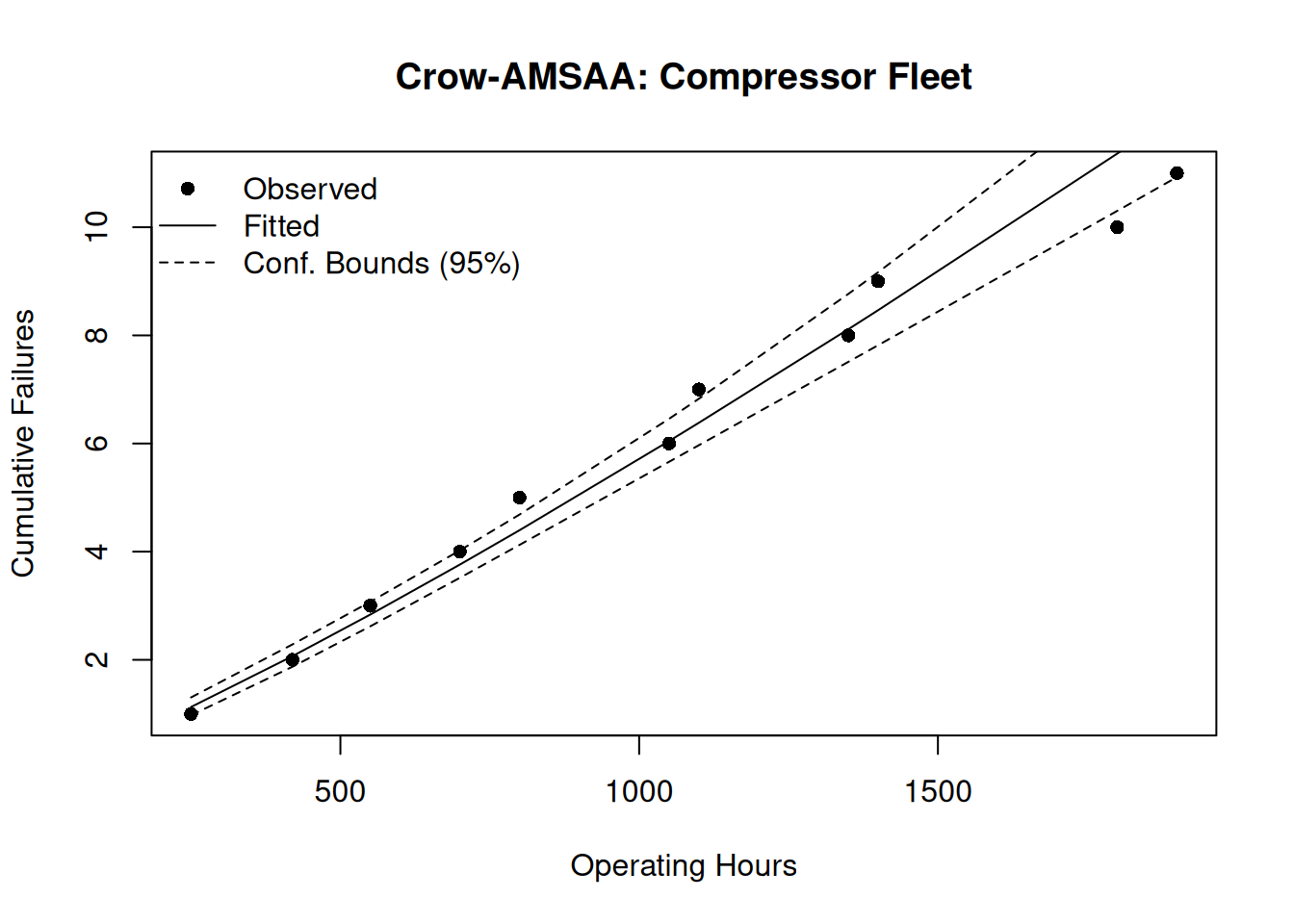

plot(fit, main = "Crow-AMSAA: Compressor Fleet",
     xlab = "Cumulative Hours", ylab = "Cumulative Failures")

6.7 Piecewise NHPP

The Piecewise NHPP (Guo et al. 2010) fits a separate Power Law to each segment of the time axis, allowing for structural changes in failure behavior (overhauls, design modifications, operational changes):

\[E[N(t)] = \begin{cases} \lambda_1 t^{\beta_1} & 0 < t \leq \tau \\ E[N(\tau)] + \lambda_2(t-\tau)^{\beta_2} & t > \tau \end{cases}\]

Pass a breakpoint estimate via the breaks argument. The segmented algorithm then optimizes the breakpoint location from the data.

times2    <- c(500, 1200, 2100, 3300, 4800, 6500, 8400, 9200, 10100, 11300,
               12800, 14500, 16400, 18500, 20800)
failures2 <- c(3, 4, 4, 5, 6, 6, 5, 3, 3, 2, 2, 2, 2, 1, 1)

fit_pw <- nhpp(time = times2, event = failures2, breaks = 8000, method = "LS")

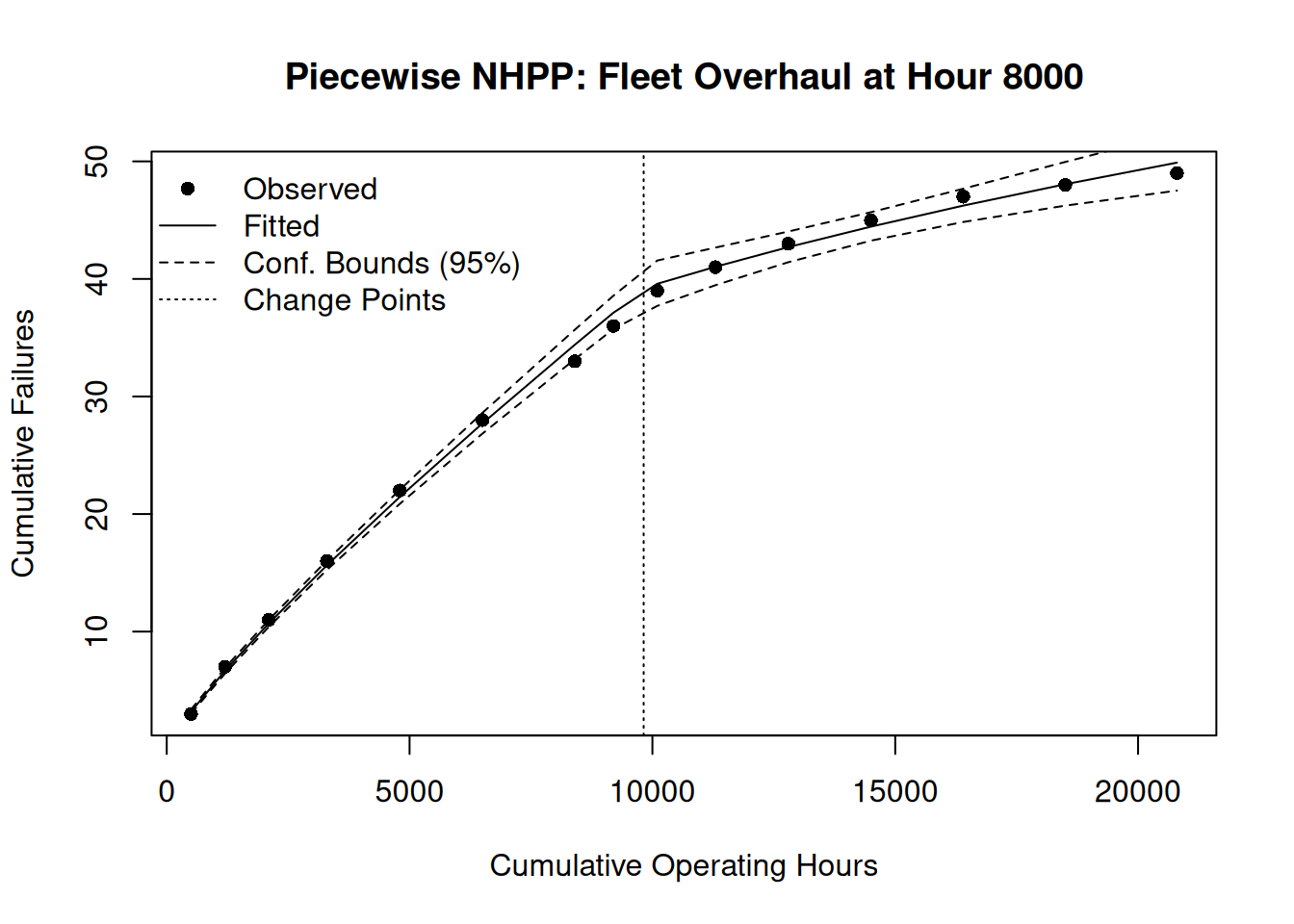

plot(fit_pw,
     main = "Piecewise NHPP: Fleet Overhaul at Hour 8000",
     xlab = "Cumulative Operating Hours",
     ylab = "Cumulative Failures")

The first segment (pre-overhaul, steeper slope) gives way to a flatter or downward-bending second segment, confirming the overhaul reduced the failure rate. The fitted breakpoint may differ slightly from the input value — here it is estimated near hour 9,820.

Review

What is the primary reason to use a Piecewise NHPP instead of a single Crow-AMSAA model?

Answer

To account for a known or suspected structural change in the failure process (overhaul, design change, operational change). A piecewise model fits each segment independently, capturing the change in failure behavior.

6.8 Exposure Analysis

When analyzing a fleet, individual units enter and leave observation at different times. Exposure is the total operating time accumulated across all units currently at risk.

The exposure() function computes: - Cumulative exposure — total system-time at risk up to each event time. - Number at risk — how many units were under observation at each time. - Event rate — cumulative events divided by cumulative exposure.

pump_data <- data.frame(
  id    = c(1, 1, 1,  2, 2, 2,  3, 3,  4, 4, 4, 4,  5, 5),
  time  = c(310, 850, 1620,  420, 1050, 2100,  580, 1890,  240, 710, 1380, 2400,  530, 1740),
  event = c(1, 1, 1,   1, 1, 1,   1, 1,   1, 1, 1, 1,   1, 1)
)

exp_result <- exposure(id = pump_data$id, time = pump_data$time,
                       event = pump_data$event)
plot(exp_result)

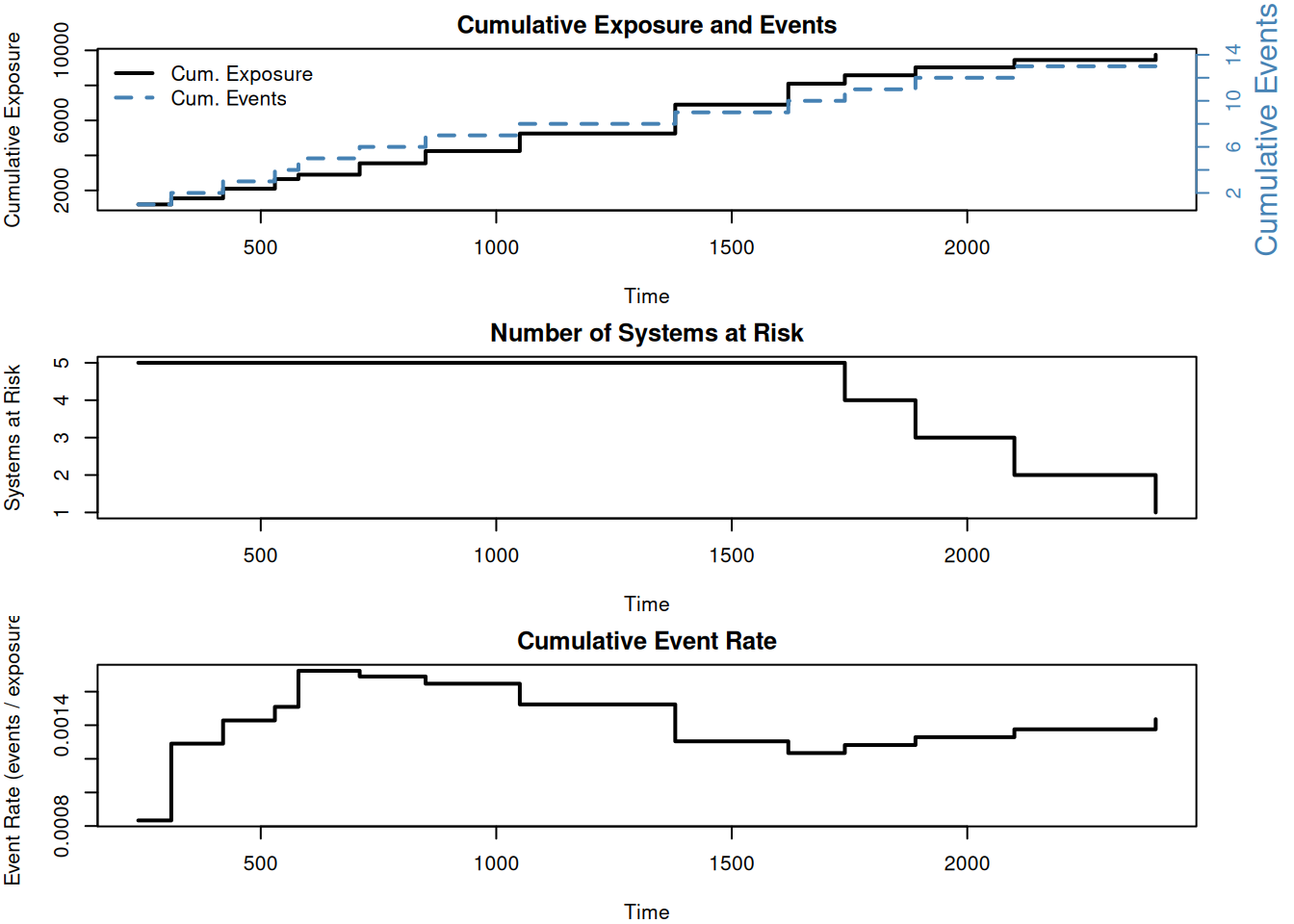

exp_result is a data frame containing three columns: cum_exposure (total system-time accumulated across all units at risk), n_risk (number of units under observation at each time), and event_rate (cumulative events divided by cumulative exposure). The exposure plot shows how total observed system-time accumulates and how the fleet-wide event rate behaves over time.

Review

Why is it important to account for exposure when comparing failure rates across systems with different observation periods?

Answer

Without normalizing by exposure, a system observed for twice as long will appear to have twice as many failures even if its underlying rate is identical. Exposure provides the denominator — failures per unit time — so rates can be compared fairly.

6.9 Mean Cumulative Function

The Mean Cumulative Function (MCF) is a non-parametric estimate of the expected cumulative number of failures per system as a function of time. It makes no distributional assumptions and handles systems with different observation periods.

The Nelson-Aalen estimator is a non-parametric method that requires no distributional assumption and naturally handles systems with different observation lengths (administrative censoring):

\[\hat{M}(t) = \sum_{t_j \leq t} \frac{d_j}{n_j}\]

where $d_j$ is the number of failures at time $t_j$ and $n_j$ is the number of systems at risk at $t_j$.

Pass end_time to mcf() when systems were observed beyond their last recorded failure — otherwise the risk set is deflated too early, inflating the rate estimate.

end_times  <- c("1" = 3000, "2" = 3000, "3" = 3000, "4" = 3000, "5" = 3000)

mcf_result <- mcf(id = pump_data$id, time = pump_data$time,
                  event = pump_data$event,
                  end_time = end_times)

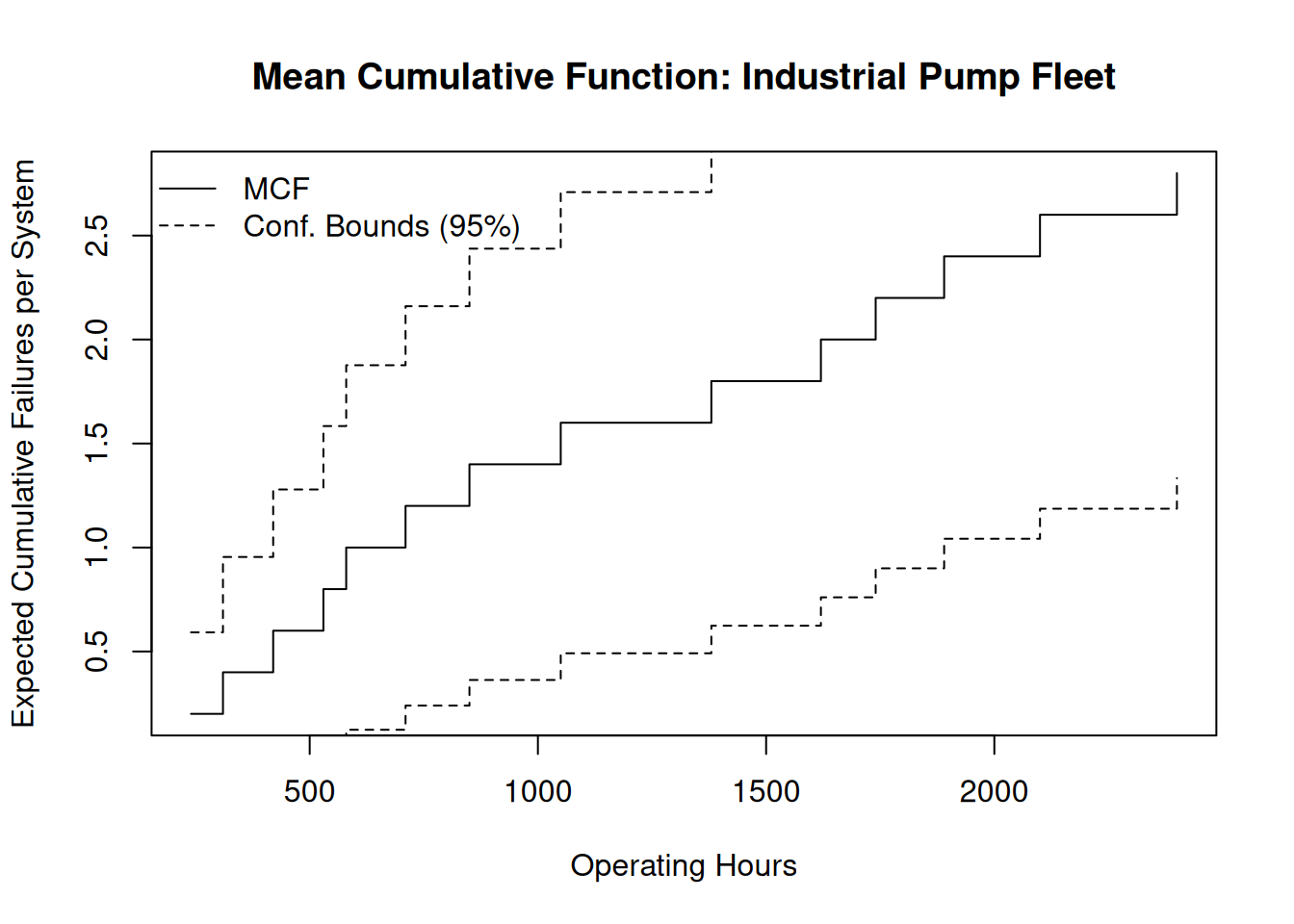

plot(mcf_result,
     main = "Mean Cumulative Function: Industrial Pump Fleet",
     xlab = "Operating Hours",
     ylab = "Expected Cumulative Failures per System")

The slope of the MCF reveals the recurrence trend: steepening = increasing failure rate; flattening = improving.

Try It

Three systems were observed with the following failure times. Each was observed until hour 2000. Compute and plot the MCF.

id    <- c(rep("1", 3), rep("2", 4), rep("3", 2))
time  <- c(400, 900, 1500,   300, 700, 1200, 1800,   600, 1400)
event <- rep(1, 9)
end_times2 <- c("1" = 2000, "2" = 2000, "3" = 2000)
# fit <- mcf(id, time, event, end_time = end_times2)
# plot(fit)

Solution

id    <- c(rep("1", 3), rep("2", 4), rep("3", 2))
time  <- c(400, 900, 1500,   300, 700, 1200, 1800,   600, 1400)
event <- rep(1, 9)
end_times2 <- c("1" = 2000, "2" = 2000, "3" = 2000)
fit <- mcf(id = id, time = time, event = event, end_time = end_times2)

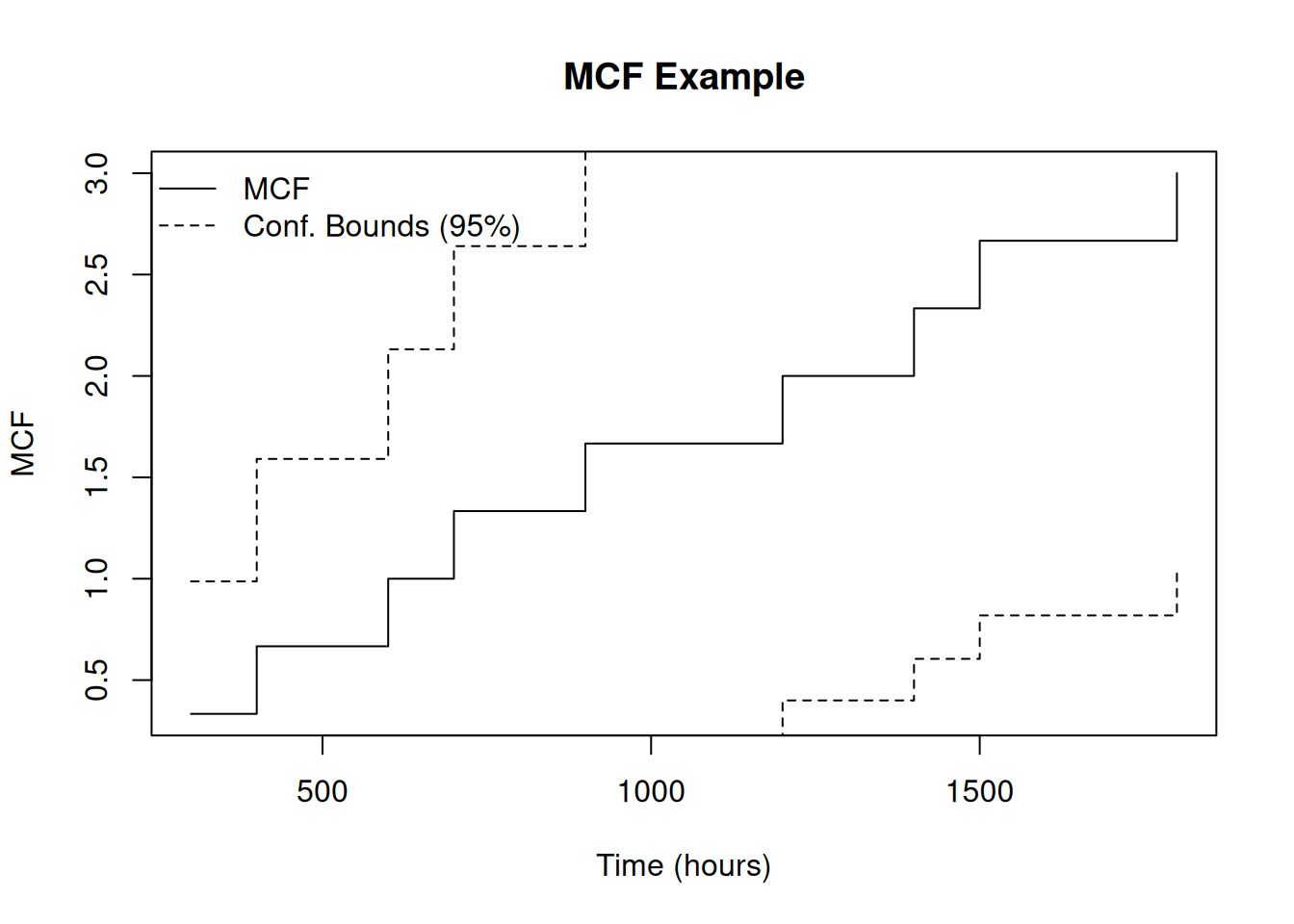

plot(fit, main = "MCF Example", xlab = "Time (hours)", ylab = "MCF")

6.10 Interpreting Results and Predicting Future Failures

Reading $\hat{\beta}$

$\hat{\beta}$	Interpretation	Typical cause
$< 1$	Decreasing failure rate	Effective maintenance, infant mortality resolved
$= 1$	Constant failure rate	Random external shocks
$> 1$	Increasing failure rate	Wear-out, accumulating damage, aging

Cumulative vs Instantaneous MTBF

Cumulative MTBF = $T / N(T)$ — historical average over all observed failures.
Instantaneous MTBF at time $t$ = $1/\rho(t) = 1/(\hat{\lambda}\hat{\beta}\,t^{\hat{\beta}-1})$ — expected time to the next failure.

For $\hat{\beta} > 1$ (aging system), the instantaneous MTBF falls below the cumulative average at late times — the system’s near-term reliability is worse than its history suggests.

Predicting Future Failures

Expected additional failures from current time $T$ to a future time $T + \Delta t$:

\[E[\Delta N] = \hat{\lambda}(T + \Delta t)^{\hat{\beta}} - \hat{\lambda}\, T^{\hat{\beta}}\]

lambda    <- 0.0003
beta      <- 0.85
T_current <- 15000
T_future  <- 17000

expected_add <- lambda * T_future^beta - lambda * T_current^beta
cat("Expected additional failures:", round(expected_add, 2), "\n")

Expected additional failures: 0.12

Try It

A system has been operating for 5,000 hours. A Power Law fit yielded $\lambda = 0.0005$ and $\beta = 1.2$. Calculate the expected additional failures in the next 1,000 hours.

lambda    <- 0.0005
beta      <- 1.2
T_current <- 5000
T_future  <- 6000
# E[ΔN] = lambda * T_future^beta - lambda * T_current^beta

Solution

lambda    <- 0.0005
beta      <- 1.2
T_current <- 5000
T_future  <- 6000
expected_failures <- lambda * T_future^beta - lambda * T_current^beta
cat("Expected additional failures:", round(expected_failures, 2), "\n")

Expected additional failures: 3.36

Review

A system has a fitted Power Law model with $\beta = 1.35$. What is the operational implication?

Answer

The failure rate is increasing — wear-out or aging is occurring. The system may be approaching a major overhaul threshold. The instantaneous MTBF is below the cumulative historical average.

6.11 Summary

Key takeaways:

Repairable systems analysis models the sequence of recurring failures, not just the first failure.
The Power Law Process ($E[N(t)] = \lambda t^\beta$) is the standard NHPP for repairable systems.
$\hat{\beta}$ determines whether the failure rate is improving ($< 1$), stable ($= 1$), or worsening ($> 1$).
nhpp() fits the Crow-AMSAA model; add breaks for piecewise fitting.
exposure() computes fleet-level operating time at risk.
mcf() estimates cumulative failures per system non-parametrically.
Future failure counts: $E[\Delta N] = \hat{\lambda}(T + \Delta t)^{\hat{\beta}} - \hat{\lambda}\,T^{\hat{\beta}}$.

Ascher, Harold, and Harry Feingold. 1984. Repairable Systems Reliability. Marcel Dekker.

Crow, Larry H. 1975. Reliability Analysis for Complex, Repairable Systems. Army Material Systems Analysis Activity. https://apps.dtic.mil/sti/citations/ADA020296.

Govan, Paul. 2024. ReliaGrowR: Reliability Growth Analysis. https://doi.org/10.32614/CRAN.package.ReliaGrowR.

Guo, H., A. Mettas, G. Sarakakis, and P. Niu. 2010. “Piecewise NHPP Models with Maximum Likelihood Estimation for Repairable Systems.” 2010 Proceedings – Annual Reliability and Maintainability Symposium (RAMS), 1–7. https://doi.org/10.1109/RAMS.2010.5448029.

Meeker, William Q., and Luis A. Escobar. 1998. Statistical Methods for Reliability Data. Wiley-Interscience.
