2 Reliability Block Diagrams

2.1 Introduction

In Chapter 1, you learned to calculate reliability metrics for individual components. This chapter extends those concepts to systems — collections of components whose arrangement determines whether the system succeeds or fails.

A Reliability Block Diagram (RBD) is a graphical tool for modeling how component reliabilities combine to produce system-level reliability. RBDs are widely used in reliability engineering to analyze designs, identify vulnerabilities, and evaluate the benefit of redundancy (Billinton and Allan 1992).

2.2 Learning Objectives

By the end of this chapter, you will be able to:

Define reliability block diagrams and relate them to physical systems.
Compute system reliability for series, parallel, and mixed configurations.
Interpret k-out-of-n (voting) systems and calculate their reliability.
Describe the relationship between RBDs and Fault Tree Analysis.
Apply RBD calculations to a realistic multi-component system.

2.3 What is a Reliability Block Diagram?

An RBD represents each component as a block with a known reliability value. Blocks are connected by lines showing logical dependencies — not physical connections. A path from left (input) to right (output) through functioning blocks represents a working system.

Each block has a reliability $R_i(t)$ derived from the exponential model (Chapter 1) or a Weibull fit (Chapter 3).

library(DiagrammeR)

2.4 Series Systems

In a series system, all components must function for the system to succeed:

\[R_{\text{sys}} = R_1 \times R_2 \times \cdots \times R_n = \prod_{i=1}^{n} R_i\]

A series system is always less reliable than its weakest component. Adding more components in series can only reduce system reliability.

Example: Water Pumping System

A pumping system requires a motor (R = 0.95), a pump (R = 0.90), and a control valve (R = 0.98) to all be operational.

grViz("
digraph series {
  rankdir = LR
  graph [bgcolor = transparent]
  node [shape = rectangle, style = filled, fillcolor = '#AED6F1',
        fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1']
  edge [arrowsize = 0.8]
  I [shape = point, width = 0.15, fillcolor = black]
  A [label = 'Motor\nR = 0.95']
  B [label = 'Pump\nR = 0.90']
  C [label = 'Valve\nR = 0.98']
  O [shape = point, width = 0.15, fillcolor = black]
  I -> A -> B -> C -> O
}
")

R_motor <- 0.95
R_pump  <- 0.90
R_valve <- 0.98

R_series <- R_motor * R_pump * R_valve
R_series  # ~0.838

[1] 0.8379

The system reliability is approximately 83.8%, lower than any individual component.

Try It

A conveyor belt system has 5 components in series with reliabilities 0.98, 0.96, 0.99, 0.94, and 0.97. Calculate the system reliability.

R_components <- c(0.98, 0.96, 0.99, 0.94, 0.97)
# R_series <- prod(R_components)

Solution

R_components <- c(0.98, 0.96, 0.99, 0.94, 0.97)
R_series <- prod(R_components)
R_series  # ~0.845

[1] 0.8492432

Review

In a series system, which component has the greatest influence on system reliability?

Answer

The least reliable component. It is the bottleneck — improving it produces the largest gain in system reliability.

2.5 Parallel Systems

In a parallel system, only one component needs to function — active redundancy (all components operate simultaneously). The system fails only if all components fail at the same time. Since component failures are assumed to be independent:

\[P(\text{all fail}) = \prod_{i=1}^{n}(1 - R_i)\]

\[R_{\text{sys}} = 1 - \prod_{i=1}^{n}(1 - R_i)\]

Adding parallel components always increases system reliability.

Example: Backup Power System

A primary generator (R = 0.90) and a standby generator (R = 0.85) — either alone keeps the system running.

grViz("
digraph parallel {
  rankdir = LR
  graph [bgcolor = transparent]
  node [shape = rectangle, style = filled, fillcolor = '#A9DFBF',
        fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1']
  edge [arrowsize = 0.8]
  I [shape = point, width = 0.15, fillcolor = black]
  A [label = 'Generator 1\nR = 0.90']
  B [label = 'Generator 2\nR = 0.85']
  O [shape = point, width = 0.15, fillcolor = black]
  I -> A -> O
  I -> B -> O
}
")

R_gen1 <- 0.90  # Generator 1
R_gen2 <- 0.85  # Generator 2

R_parallel <- 1 - (1 - R_gen1) * (1 - R_gen2)
R_parallel  # 0.985

[1] 0.985

The parallel system reliability is 98.5%, much higher than either generator alone.

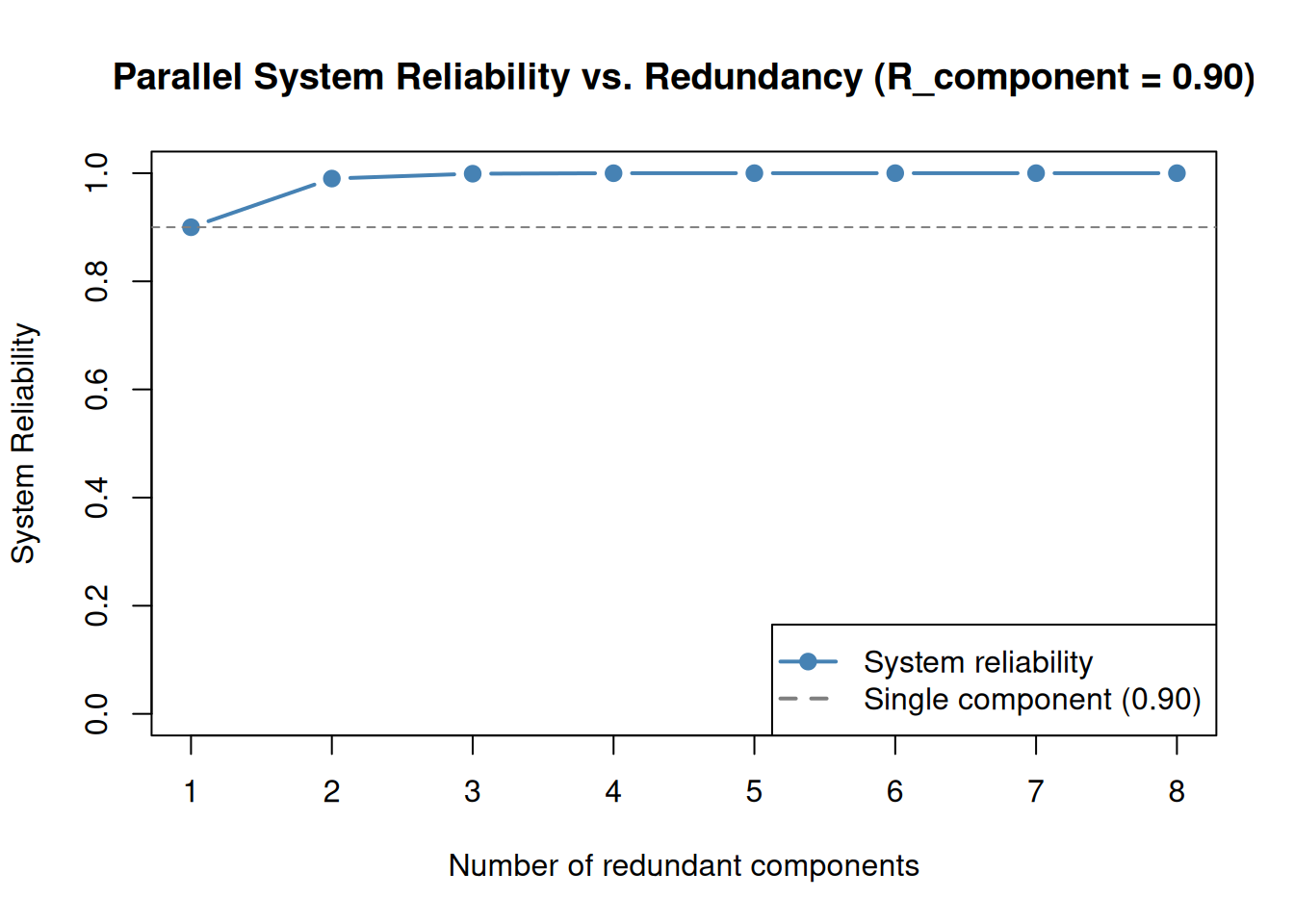

The benefit of redundancy grows with each additional component:

n_vals <- 1:8
Rc     <- 0.90
R_par  <- 1 - (1 - Rc)^n_vals

plot(n_vals, R_par, type = "b", col = "steelblue", lwd = 2, pch = 19,
     xlab = "Number of redundant components",
     ylab = "System Reliability",
     main = "Parallel System Reliability vs. Redundancy (R_component = 0.90)",
     ylim = c(0, 1))
abline(h = Rc, col = "gray50", lty = 2)
legend("bottomright",
       legend = c("System reliability", "Single component (0.90)"),
       col = c("steelblue", "gray50"), lty = c(1, 2), pch = c(19, NA), lwd = 2)

Try It

A critical pump station has 3 pumps in parallel. Each pump has reliability 0.88. What is the system reliability?

R_components <- c(0.88, 0.88, 0.88)
# R_parallel <- 1 - prod(1 - R_components)

Solution

R_components <- c(0.88, 0.88, 0.88)
R_parallel <- 1 - prod(1 - R_components)
R_parallel  # ~0.9983

[1] 0.998272

2.6 Mixed Systems

Most real systems combine series and parallel blocks. To analyze a mixed system, decompose it into subsystems and apply series and parallel rules step by step, working from the innermost blocks outward.

Example: Safety System

Subsystem A: a sensor (R = 0.95) and a transmitter (R = 0.97) in series.
Subsystem B: two redundant actuators (each R = 0.90) in parallel.
Subsystems A and B in series (both must work).

grViz("
digraph mixed {
  rankdir = LR
  graph [bgcolor = transparent]
  node [shape = rectangle, style = filled, fillcolor = '#F9E79F',
        fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1']
  edge [arrowsize = 0.8]
  I [shape = point, width = 0.15, fillcolor = black]
  S [label = 'Sensor\nR = 0.95']
  T [label = 'Transmitter\nR = 0.97']
  A1 [label = 'Actuator 1\nR = 0.90']
  A2 [label = 'Actuator 2\nR = 0.90']
  O [shape = point, width = 0.15, fillcolor = black]
  I -> S -> T -> A1 -> O
  T -> A2 -> O
}
")

# Subsystem A (series)
R_A <- 0.95 * 0.97
R_A

[1] 0.9215

# Subsystem B (parallel)
R_B <- 1 - (1 - 0.90) * (1 - 0.90)
R_B

[1] 0.99

# Overall system (A and B in series)
R_system <- R_A * R_B
R_system

[1] 0.912285

Review

A system has two subsystems in series. Subsystem 1 has two components in parallel (each R = 0.85); Subsystem 2 is a single component with R = 0.92. What is the system reliability?

Answer

$R_{\text{sub1}} = 1 - (1 - 0.85)^2 = 0.9775$. $R_{\text{sys}} = 0.9775 \times 0.92 \approx 0.899$.

2.7 k-out-of-n Systems

A k-out-of-n system succeeds if at least $k$ of its $n$ identical components function:

$k = n$: all must work → series.
$k = 1$: at least one works → parallel.
$1 < k < n$: voting or load-sharing system.

The reliability of a k-out-of-n system (identical components, each with reliability $p$) follows the binomial distribution:

\[R_{k/n} = \sum_{i=k}^{n} \binom{n}{i} p^i (1-p)^{n-i} = 1 - \text{pbinom}(k-1,\, n,\, 1-p)\]

The compact R expression counts the probability that at least $k$ components function: pbinom(k-1, n, 1-p) gives the probability that $k-1$ or fewer components work (i.e., the system fails), and we subtract that from 1.

Example: Flight Control Computers

A 2-out-of-3 voter: at least 2 of 3 computers must agree. Each computer has R = 0.99.

grViz("
digraph koon {
  rankdir = LR
  graph [bgcolor = transparent]
  node [shape = rectangle, style = filled, fillcolor = '#D7BDE2',
        fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1']
  edge [arrowsize = 0.8]
  I  [shape = point, width = 0.15, fillcolor = black]
  C1 [label = 'Computer 1\nR = 0.99']
  C2 [label = 'Computer 2\nR = 0.99']
  C3 [label = 'Computer 3\nR = 0.99']
  V  [label = 'Voter\n(2-of-3)', shape = diamond, fillcolor = '#F1948A', fontsize = 11]
  O  [shape = point, width = 0.15, fillcolor = black]
  I -> C1 -> V
  I -> C2 -> V
  I -> C3 -> V
  V -> O
}
")

n <- 3      # total components
k <- 2      # minimum required
p <- 0.99   # individual reliability

R_voting <- 1 - pbinom(k - 1, n, 1 - p)
R_voting  # 0.9997

[1] 0.000298

Try It

A 3-out-of-5 redundant sensor array. Each sensor has reliability p = 0.95. Calculate the system reliability.

n <- 5
k <- 3
p <- 0.95
# R_sys <- 1 - pbinom(k - 1, n, 1 - p)

Solution

n <- 5
k <- 3
p <- 0.95
R_sys <- 1 - pbinom(k - 1, n, 1 - p)
R_sys  # ~0.9988

[1] 0.001158125

2.8 System MTTF

For a series system of components with constant failure rates, the system failure rate equals the sum of component failure rates:

\[\lambda_{\text{sys}} = \sum_{i=1}^{n} \lambda_i \qquad \text{MTTF}_{\text{sys}} = \frac{1}{\lambda_{\text{sys}}}\]

For $n$ identical parallel components each with failure rate $\lambda$:

\[\text{MTTF}_{\text{parallel}} = \frac{1}{\lambda}\left(1 + \frac{1}{2} + \frac{1}{3} + \cdots + \frac{1}{n}\right)\]

Example: Two Pumps in Parallel

lambda <- 0.01  # failures per hour

MTTF_single   <- 1 / lambda
MTTF_parallel <- (1 / lambda) * (1 + 1/2)

MTTF_single    # 100 hours

[1] 100

MTTF_parallel  # 150 hours — 50% longer with one spare

[1] 150

Review

Three components in series have failure rates 0.02, 0.03, and 0.05 failures/hour. What is the system MTTF?

Answer

$\lambda_{\text{sys}} = 0.02 + 0.03 + 0.05 = 0.10$, so $\text{MTTF} = 1/0.10 = 10$ hours.

2.9 Common Cause Failure

All the analyses above assume that component failures are statistically independent — if Component A fails, it tells us nothing about Component B’s probability of failing. In practice, this assumption can break down.

Common Cause Failure (CCF) occurs when a single event simultaneously causes multiple components to fail. Typical sources include:

A shared environment (vibration, temperature, contamination) that degrades all components together
A common design flaw or manufacturing batch defect
A maintenance error that affects multiple redundant units at once

CCF is especially dangerous because redundancy does not protect against it: if both pumps in a parallel system can be destroyed by the same flooding event, adding a third pump does not help.

The Beta-Factor Model

The simplest CCF model splits each component’s total failure rate $\lambda$ into two parts:

\[\lambda_{\text{ind}} = (1 - \beta_{\text{CCF}}) \cdot \lambda \qquad \text{(independent failures)}\] \[\lambda_{\text{CCF}} = \beta_{\text{CCF}} \cdot \lambda \qquad \text{(common-cause failures)}\]

The beta-factor $\beta_{\text{CCF}}$ is the fraction of failures attributable to common causes. Typical values range from 0.01 (1%) for well-separated, dissimilar components to 0.20 (20%) for closely coupled identical units.

System reliability for a two-component parallel system with CCF:

\[R_{\text{sys}} = \underbrace{\left[1 - (1 - R_{\text{ind}})^2\right]}_{\text{parallel, independent part}} \times \underbrace{e^{-\lambda_{\text{CCF}} \, t}}_{\text{common-cause part}}\]

lambda <- 0.001   # total component failure rate (per hour)
t      <- 1000    # mission time (hours)

beta_vals <- c(0, 0.05, 0.10, 0.20)

results <- sapply(beta_vals, function(b) {
  R_ind <- exp(-(1 - b) * lambda * t)   # independent reliability
  R_ccf <- exp(-b * lambda * t)         # common-cause reliability
  R_sys <- (1 - (1 - R_ind)^2) * R_ccf
  round(R_sys, 4)
})

data.frame(beta_CCF = beta_vals, R_system = results)

  beta_CCF R_system
1     0.00   0.6004
2     0.05   0.5935
3     0.10   0.5862
4     0.20   0.5705

Even a modest $\beta_{\text{CCF}} = 0.10$ visibly reduces the system reliability that redundancy would otherwise provide.

Review

Why doesn’t adding more parallel components help when $\beta_{\text{CCF}}$ is large?

Answer

When $\beta_{\text{CCF}}$ is large, a significant fraction of failures are common cause — they simultaneously affect all components regardless of how many there are. Adding more identical, coupled components may even increase the common-cause failure rate if they share the same environment or design flaw. Effective mitigation requires diversity (different designs, manufacturers, or locations) rather than simple redundancy.

CCF data and beta-factor values for different equipment types are tabulated in IEC 61508 (functional safety) and MIL-HDBK-217F (electronic reliability). For nuclear applications, the NUREG/CR-5497 handbook provides detailed CCF databases.

2.10 Introduction to Fault Tree Analysis

Fault Tree Analysis (FTA) (Vesely et al. 1981) is a top-down approach that starts with an undesirable event (the top event) and works backward to identify combinations of component failures that could cause it.

While an RBD asks “What must work for the system to succeed?”, a fault tree asks “What can cause the system to fail?”

Gates

AND gate: top event occurs only if all inputs occur — corresponds to parallel RBD components (all must fail).
OR gate: top event occurs if any input occurs — corresponds to series RBD components (any failure causes system failure).

RBD—Fault Tree Duality

RBD configuration	Fault tree gate for system failure
Series (all must work)	OR gate (any failure causes system failure)
Parallel (any can work)	AND gate (all must fail for system failure)

grViz("
digraph fta {
  rankdir = TB
  graph [bgcolor = transparent]
  node [fontname = 'sans-serif', fontsize = 12, style = filled]
  edge [arrowsize = 0.8]
  Top [label = 'System\nFailure',  shape = rectangle, fillcolor = '#E74C3C', fontcolor = white]
  OR  [label = 'OR Gate',          shape = diamond,   fillcolor = '#F39C12']
  F1  [label = 'Component A\nFails', shape = ellipse, fillcolor = '#AED6F1']
  F2  [label = 'Component B\nFails', shape = ellipse, fillcolor = '#AED6F1']
  Top -> OR
  OR  -> F1
  OR  -> F2
}
")

This OR gate corresponds to a two-component series RBD: any single failure causes system failure. For complex fault trees, the R package FaultTree on CRAN provides computational support.

Review

A fault tree has an AND gate combining two component failures. Which RBD configuration does this correspond to?

Answer

Parallel — an AND gate means the system fails only if both components fail simultaneously, which is exactly the parallel (redundant) configuration.

2.11 Case Study: Industrial Cooling System

An industrial cooling system has the following architecture:

Water supply subsystem: two pumps in parallel (each R = 0.92), followed by a filter in series (R = 0.99).
Control subsystem: a primary controller (R = 0.97) and a backup controller in parallel (R = 0.95).
Both subsystems must work (series at system level).

# Step 1 — Water supply subsystem
R_pump_parallel <- 1 - (1 - 0.92)^2
R_water <- R_pump_parallel * 0.99
R_water

[1] 0.983664

# Step 2 — Control subsystem
R_control <- 1 - (1 - 0.97) * (1 - 0.95)
R_control

[1] 0.9985

# Step 3 — Overall system (both subsystems in series)
R_system <- R_water * R_control
R_system

[1] 0.9821885

Try It

Modify the case study: the filter is upgraded to R = 0.999. Recalculate the system reliability.

R_pump1  <- 0.92
R_pump2  <- 0.92
R_filter <- 0.999   # upgraded from 0.99
R_ctrl1  <- 0.97
R_ctrl2  <- 0.95

Solution

R_pump1  <- 0.92
R_pump2  <- 0.92
R_filter <- 0.999
R_ctrl1  <- 0.97
R_ctrl2  <- 0.95

R_pump_parallel <- 1 - (1 - R_pump1) * (1 - R_pump2)
R_water   <- R_pump_parallel * R_filter
R_control <- 1 - (1 - R_ctrl1) * (1 - R_ctrl2)
R_system  <- R_water * R_control
R_system  # ~0.985

[1] 0.9911175

2.12 Summary

Key takeaways:

Series: $R_{\text{sys}} = \prod R_i$ — every component must work; reliability decreases with more components.
Parallel: $R_{\text{sys}} = 1 - \prod(1-R_i)$ — redundancy; only one component needs to work.
Mixed: decompose into subsystems, apply formulas step by step.
k-out-of-n: 1 - pbinom(k-1, n, 1-p) for voting/load-sharing systems.
Series MTTF: $1/\sum\lambda_i$; Parallel MTTF: $(1/\lambda)\sum_{i=1}^{n}(1/i)$.
Common Cause Failure: redundancy requires diversity to be effective — the $\beta_{\text{CCF}}$ factor quantifies the fraction of failures caused by shared events; adding more identical, coupled components does not protect against CCF.
FTA duality: series RBD ↔︎ OR gate; parallel RBD ↔︎ AND gate.

Billinton, Roy, and Ronald N. Allan. 1992. Reliability Evaluation of Engineering Systems. 2nd ed. Plenum Press.

Vesely, W., F. Goldberg, N. Roberts, and D. Haasl. 1981. Fault Tree Handbook. NUREG-0492. US Nuclear Regulatory Commission.

--- prefer-html: true --- # Reliability Block Diagrams {#sec-rbd} ## Introduction In @sec-ram, you learned to calculate reliability metrics for individual components. This chapter extends those concepts to *systems* — collections of components whose arrangement determines whether the system succeeds or fails. A **Reliability Block Diagram (RBD)** is a graphical tool for modeling how component reliabilities combine to produce system-level reliability. RBDs are widely used in reliability engineering to analyze designs, identify vulnerabilities, and evaluate the benefit of redundancy [@Billinton1992]. ## Learning Objectives By the end of this chapter, you will be able to: - Define reliability block diagrams and relate them to physical systems. - Compute system reliability for series, parallel, and mixed configurations. - Interpret k-out-of-n (voting) systems and calculate their reliability. - Describe the relationship between RBDs and Fault Tree Analysis. - Apply RBD calculations to a realistic multi-component system. ## What is a Reliability Block Diagram? An RBD represents each component as a **block** with a known reliability value. Blocks are connected by lines showing logical dependencies — not physical connections. A path from left (input) to right (output) through functioning blocks represents a working system. Each block has a reliability $R_i(t)$ derived from the exponential model (@sec-ram) or a Weibull fit (@sec-lda). ```{r} #| message: false library(DiagrammeR) ``` ## Series Systems In a **series** system, all components must function for the system to succeed: $$R_{\text{sys}} = R_1 \times R_2 \times \cdots \times R_n = \prod_{i=1}^{n} R_i$$ A series system is *always less reliable* than its weakest component. Adding more components in series can only reduce system reliability. ### Example: Water Pumping System A pumping system requires a motor (R = 0.95), a pump (R = 0.90), and a control valve (R = 0.98) to all be operational. ```{r} grViz(" digraph series { rankdir = LR graph [bgcolor = transparent] node [shape = rectangle, style = filled, fillcolor = '#AED6F1', fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1'] edge [arrowsize = 0.8] I [shape = point, width = 0.15, fillcolor = black] A [label = 'Motor\nR = 0.95'] B [label = 'Pump\nR = 0.90'] C [label = 'Valve\nR = 0.98'] O [shape = point, width = 0.15, fillcolor = black] I -> A -> B -> C -> O } ") ``` ```{r} R_motor <- 0.95 R_pump <- 0.90 R_valve <- 0.98 R_series <- R_motor * R_pump * R_valve R_series # ~0.838 ``` The system reliability is approximately 83.8%, lower than any individual component. ::: {.callout-note} ## Try It A conveyor belt system has 5 components in series with reliabilities 0.98, 0.96, 0.99, 0.94, and 0.97. Calculate the system reliability. ```{r} R_components <- c(0.98, 0.96, 0.99, 0.94, 0.97) # R_series <- prod(R_components) ``` <details><summary>Solution</summary> ```{r} R_components <- c(0.98, 0.96, 0.99, 0.94, 0.97) R_series <- prod(R_components) R_series # ~0.845 ``` </details> ::: ::: {.callout-tip} ## Review In a series system, which component has the greatest influence on system reliability? <details><summary>Answer</summary> The **least reliable** component. It is the bottleneck — improving it produces the largest gain in system reliability. </details> ::: ## Parallel Systems In a **parallel** system, only one component needs to function — **active redundancy** (all components operate simultaneously). The system fails *only* if all components fail at the same time. Since component failures are assumed to be independent: $$P(\text{all fail}) = \prod_{i=1}^{n}(1 - R_i)$$ $$R_{\text{sys}} = 1 - \prod_{i=1}^{n}(1 - R_i)$$ Adding parallel components always increases system reliability. ### Example: Backup Power System A primary generator (R = 0.90) and a standby generator (R = 0.85) — either alone keeps the system running. ```{r} grViz(" digraph parallel { rankdir = LR graph [bgcolor = transparent] node [shape = rectangle, style = filled, fillcolor = '#A9DFBF', fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1'] edge [arrowsize = 0.8] I [shape = point, width = 0.15, fillcolor = black] A [label = 'Generator 1\nR = 0.90'] B [label = 'Generator 2\nR = 0.85'] O [shape = point, width = 0.15, fillcolor = black] I -> A -> O I -> B -> O } ") ``` ```{r} R_gen1 <- 0.90 # Generator 1 R_gen2 <- 0.85 # Generator 2 R_parallel <- 1 - (1 - R_gen1) * (1 - R_gen2) R_parallel # 0.985 ``` The parallel system reliability is 98.5%, much higher than either generator alone. The benefit of redundancy grows with each additional component: ```{r} n_vals <- 1:8 Rc <- 0.90 R_par <- 1 - (1 - Rc)^n_vals plot(n_vals, R_par, type = "b", col = "steelblue", lwd = 2, pch = 19, xlab = "Number of redundant components", ylab = "System Reliability", main = "Parallel System Reliability vs. Redundancy (R_component = 0.90)", ylim = c(0, 1)) abline(h = Rc, col = "gray50", lty = 2) legend("bottomright", legend = c("System reliability", "Single component (0.90)"), col = c("steelblue", "gray50"), lty = c(1, 2), pch = c(19, NA), lwd = 2) ``` ::: {.callout-note} ## Try It A critical pump station has 3 pumps in parallel. Each pump has reliability 0.88. What is the system reliability? ```{r} R_components <- c(0.88, 0.88, 0.88) # R_parallel <- 1 - prod(1 - R_components) ``` <details><summary>Solution</summary> ```{r} R_components <- c(0.88, 0.88, 0.88) R_parallel <- 1 - prod(1 - R_components) R_parallel # ~0.9983 ``` </details> ::: ## Mixed Systems Most real systems combine series and parallel blocks. To analyze a **mixed** system, decompose it into subsystems and apply series and parallel rules step by step, working from the innermost blocks outward. ### Example: Safety System - **Subsystem A**: a sensor (R = 0.95) and a transmitter (R = 0.97) in series. - **Subsystem B**: two redundant actuators (each R = 0.90) in parallel. - Subsystems A and B in series (both must work). ```{r} grViz(" digraph mixed { rankdir = LR graph [bgcolor = transparent] node [shape = rectangle, style = filled, fillcolor = '#F9E79F', fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1'] edge [arrowsize = 0.8] I [shape = point, width = 0.15, fillcolor = black] S [label = 'Sensor\nR = 0.95'] T [label = 'Transmitter\nR = 0.97'] A1 [label = 'Actuator 1\nR = 0.90'] A2 [label = 'Actuator 2\nR = 0.90'] O [shape = point, width = 0.15, fillcolor = black] I -> S -> T -> A1 -> O T -> A2 -> O } ") ``` ```{r} # Subsystem A (series) R_A <- 0.95 * 0.97 R_A # Subsystem B (parallel) R_B <- 1 - (1 - 0.90) * (1 - 0.90) R_B # Overall system (A and B in series) R_system <- R_A * R_B R_system ``` ::: {.callout-tip} ## Review A system has two subsystems in series. Subsystem 1 has two components in parallel (each R = 0.85); Subsystem 2 is a single component with R = 0.92. What is the system reliability? <details><summary>Answer</summary> $R_{\text{sub1}} = 1 - (1 - 0.85)^2 = 0.9775$. $R_{\text{sys}} = 0.9775 \times 0.92 \approx 0.899$. </details> ::: ## k-out-of-n Systems A **k-out-of-n** system succeeds if at least $k$ of its $n$ identical components function: - $k = n$: all must work → series. - $k = 1$: at least one works → parallel. - $1 < k < n$: voting or load-sharing system. The reliability of a k-out-of-n system (identical components, each with reliability $p$) follows the binomial distribution: $$R_{k/n} = \sum_{i=k}^{n} \binom{n}{i} p^i (1-p)^{n-i} = 1 - \text{pbinom}(k-1,\, n,\, 1-p)$$ The compact R expression counts the probability that *at least* $k$ components function: `pbinom(k-1, n, 1-p)` gives the probability that $k-1$ or fewer components work (i.e., the system fails), and we subtract that from 1. ### Example: Flight Control Computers A 2-out-of-3 voter: at least 2 of 3 computers must agree. Each computer has R = 0.99. ```{r} grViz(" digraph koon { rankdir = LR graph [bgcolor = transparent] node [shape = rectangle, style = filled, fillcolor = '#D7BDE2', fontname = 'sans-serif', fontsize = 12, margin = '0.2,0.1'] edge [arrowsize = 0.8] I [shape = point, width = 0.15, fillcolor = black] C1 [label = 'Computer 1\nR = 0.99'] C2 [label = 'Computer 2\nR = 0.99'] C3 [label = 'Computer 3\nR = 0.99'] V [label = 'Voter\n(2-of-3)', shape = diamond, fillcolor = '#F1948A', fontsize = 11] O [shape = point, width = 0.15, fillcolor = black] I -> C1 -> V I -> C2 -> V I -> C3 -> V V -> O } ") ``` ```{r} n <- 3 # total components k <- 2 # minimum required p <- 0.99 # individual reliability R_voting <- 1 - pbinom(k - 1, n, 1 - p) R_voting # 0.9997 ``` ::: {.callout-note} ## Try It A 3-out-of-5 redundant sensor array. Each sensor has reliability p = 0.95. Calculate the system reliability. ```{r} n <- 5 k <- 3 p <- 0.95 # R_sys <- 1 - pbinom(k - 1, n, 1 - p) ``` <details><summary>Solution</summary> ```{r} n <- 5 k <- 3 p <- 0.95 R_sys <- 1 - pbinom(k - 1, n, 1 - p) R_sys # ~0.9988 ``` </details> ::: ## System MTTF For a **series** system of components with constant failure rates, the system failure rate equals the sum of component failure rates: $$\lambda_{\text{sys}} = \sum_{i=1}^{n} \lambda_i \qquad \text{MTTF}_{\text{sys}} = \frac{1}{\lambda_{\text{sys}}}$$ For $n$ identical parallel components each with failure rate $\lambda$: $$\text{MTTF}_{\text{parallel}} = \frac{1}{\lambda}\left(1 + \frac{1}{2} + \frac{1}{3} + \cdots + \frac{1}{n}\right)$$ ### Example: Two Pumps in Parallel ```{r} lambda <- 0.01 # failures per hour MTTF_single <- 1 / lambda MTTF_parallel <- (1 / lambda) * (1 + 1/2) MTTF_single # 100 hours MTTF_parallel # 150 hours — 50% longer with one spare ``` ::: {.callout-tip} ## Review Three components in series have failure rates 0.02, 0.03, and 0.05 failures/hour. What is the system MTTF? <details><summary>Answer</summary> $\lambda_{\text{sys}} = 0.02 + 0.03 + 0.05 = 0.10$, so $\text{MTTF} = 1/0.10 = 10$ hours. </details> ::: ## Common Cause Failure All the analyses above assume that component failures are **statistically independent** — if Component A fails, it tells us nothing about Component B's probability of failing. In practice, this assumption can break down. **Common Cause Failure (CCF)** occurs when a single event simultaneously causes multiple components to fail. Typical sources include: - A shared environment (vibration, temperature, contamination) that degrades all components together - A common design flaw or manufacturing batch defect - A maintenance error that affects multiple redundant units at once CCF is especially dangerous because **redundancy does not protect against it**: if both pumps in a parallel system can be destroyed by the same flooding event, adding a third pump does not help. ### The Beta-Factor Model The simplest CCF model splits each component's total failure rate $\lambda$ into two parts: $$\lambda_{\text{ind}} = (1 - \beta_{\text{CCF}}) \cdot \lambda \qquad \text{(independent failures)}$$ $$\lambda_{\text{CCF}} = \beta_{\text{CCF}} \cdot \lambda \qquad \text{(common-cause failures)}$$ The **beta-factor** $\beta_{\text{CCF}}$ is the fraction of failures attributable to common causes. Typical values range from 0.01 (1%) for well-separated, dissimilar components to 0.20 (20%) for closely coupled identical units. System reliability for a two-component parallel system with CCF: $$R_{\text{sys}} = \underbrace{\left[1 - (1 - R_{\text{ind}})^2\right]}_{\text{parallel, independent part}} \times \underbrace{e^{-\lambda_{\text{CCF}} \, t}}_{\text{common-cause part}}$$ ```{r} lambda <- 0.001 # total component failure rate (per hour) t <- 1000 # mission time (hours) beta_vals <- c(0, 0.05, 0.10, 0.20) results <- sapply(beta_vals, function(b) { R_ind <- exp(-(1 - b) * lambda * t) # independent reliability R_ccf <- exp(-b * lambda * t) # common-cause reliability R_sys <- (1 - (1 - R_ind)^2) * R_ccf round(R_sys, 4) }) data.frame(beta_CCF = beta_vals, R_system = results) ``` Even a modest $\beta_{\text{CCF}} = 0.10$ visibly reduces the system reliability that redundancy would otherwise provide. ::: {.callout-tip} ## Review Why doesn't adding more parallel components help when $\beta_{\text{CCF}}$ is large? <details><summary>Answer</summary> When $\beta_{\text{CCF}}$ is large, a significant fraction of failures are **common cause** — they simultaneously affect all components regardless of how many there are. Adding more identical, coupled components may even increase the common-cause failure rate if they share the same environment or design flaw. Effective mitigation requires **diversity** (different designs, manufacturers, or locations) rather than simple redundancy. </details> ::: CCF data and beta-factor values for different equipment types are tabulated in IEC 61508 (functional safety) and MIL-HDBK-217F (electronic reliability). For nuclear applications, the NUREG/CR-5497 handbook provides detailed CCF databases. ## Introduction to Fault Tree Analysis **Fault Tree Analysis (FTA)** [@Vesely1981] is a top-down approach that starts with an undesirable event (the **top event**) and works backward to identify combinations of component failures that could cause it. While an RBD asks "What must work for the system to succeed?", a fault tree asks "What can cause the system to fail?" ### Gates - **AND gate**: top event occurs only if *all* inputs occur — corresponds to **parallel** RBD components (all must fail). - **OR gate**: top event occurs if *any* input occurs — corresponds to **series** RBD components (any failure causes system failure). ### RBD—Fault Tree Duality | RBD configuration | Fault tree gate for system failure | |:---:|:---:| | Series (all must work) | OR gate (any failure causes system failure) | | Parallel (any can work) | AND gate (all must fail for system failure) | ```{r} grViz(" digraph fta { rankdir = TB graph [bgcolor = transparent] node [fontname = 'sans-serif', fontsize = 12, style = filled] edge [arrowsize = 0.8] Top [label = 'System\nFailure', shape = rectangle, fillcolor = '#E74C3C', fontcolor = white] OR [label = 'OR Gate', shape = diamond, fillcolor = '#F39C12'] F1 [label = 'Component A\nFails', shape = ellipse, fillcolor = '#AED6F1'] F2 [label = 'Component B\nFails', shape = ellipse, fillcolor = '#AED6F1'] Top -> OR OR -> F1 OR -> F2 } ") ``` This OR gate corresponds to a two-component series RBD: any single failure causes system failure. For complex fault trees, the R package `FaultTree` on CRAN provides computational support. ::: {.callout-tip} ## Review A fault tree has an AND gate combining two component failures. Which RBD configuration does this correspond to? <details><summary>Answer</summary> **Parallel** — an AND gate means the system fails only if both components fail simultaneously, which is exactly the parallel (redundant) configuration. </details> ::: ## Case Study: Industrial Cooling System An industrial cooling system has the following architecture: 1. **Water supply subsystem**: two pumps in parallel (each R = 0.92), followed by a filter in series (R = 0.99). 2. **Control subsystem**: a primary controller (R = 0.97) and a backup controller in parallel (R = 0.95). 3. Both subsystems must work (series at system level). ```{r} # Step 1 — Water supply subsystem R_pump_parallel <- 1 - (1 - 0.92)^2 R_water <- R_pump_parallel * 0.99 R_water # Step 2 — Control subsystem R_control <- 1 - (1 - 0.97) * (1 - 0.95) R_control # Step 3 — Overall system (both subsystems in series) R_system <- R_water * R_control R_system ``` ::: {.callout-note} ## Try It Modify the case study: the filter is upgraded to R = 0.999. Recalculate the system reliability. ```{r} R_pump1 <- 0.92 R_pump2 <- 0.92 R_filter <- 0.999 # upgraded from 0.99 R_ctrl1 <- 0.97 R_ctrl2 <- 0.95 ``` <details><summary>Solution</summary> ```{r} R_pump1 <- 0.92 R_pump2 <- 0.92 R_filter <- 0.999 R_ctrl1 <- 0.97 R_ctrl2 <- 0.95 R_pump_parallel <- 1 - (1 - R_pump1) * (1 - R_pump2) R_water <- R_pump_parallel * R_filter R_control <- 1 - (1 - R_ctrl1) * (1 - R_ctrl2) R_system <- R_water * R_control R_system # ~0.985 ``` </details> ::: ## Summary **Key takeaways:** - **Series**: $R_{\text{sys}} = \prod R_i$ — every component must work; reliability decreases with more components. - **Parallel**: $R_{\text{sys}} = 1 - \prod(1-R_i)$ — redundancy; only one component needs to work. - **Mixed**: decompose into subsystems, apply formulas step by step. - **k-out-of-n**: `1 - pbinom(k-1, n, 1-p)` for voting/load-sharing systems. - **Series MTTF**: $1/\sum\lambda_i$; **Parallel MTTF**: $(1/\lambda)\sum_{i=1}^{n}(1/i)$. - **Common Cause Failure**: redundancy requires *diversity* to be effective — the $\beta_{\text{CCF}}$ factor quantifies the fraction of failures caused by shared events; adding more identical, coupled components does not protect against CCF. - **FTA duality**: series RBD ↔ OR gate; parallel RBD ↔ AND gate.
