Plot Method for nhpp Objects. — plot.nhpp • ReliaGrowR

Plots observed cumulative events with the fitted NHPP model and optional confidence bounds.

Usage

# S3 method for class 'nhpp'
plot(x, conf_bounds = TRUE, legend = TRUE, legend_pos = "topleft", ...)

Arguments

x: An object of class nhpp.
conf_bounds: Logical; include confidence bounds (default: TRUE).
legend: Logical; show the legend (default: TRUE).
legend_pos: Position of the legend (default: "topleft").
...: Additional arguments passed to plot().

Value

Invisibly returns NULL.

See also

Other Repairable Systems Analysis: exposure(), mcf(), nhpp(), overlay_nhpp(), plot.exposure(), plot.mcf(), plot.nhpp_predict(), predict_nhpp(), print.exposure(), print.mcf(), print.nhpp(), print.nhpp_predict()

Examples

time <- c(200, 400, 600, 800, 1000)
event <- c(3, 5, 4, 7, 6)
result <- nhpp(time, event)

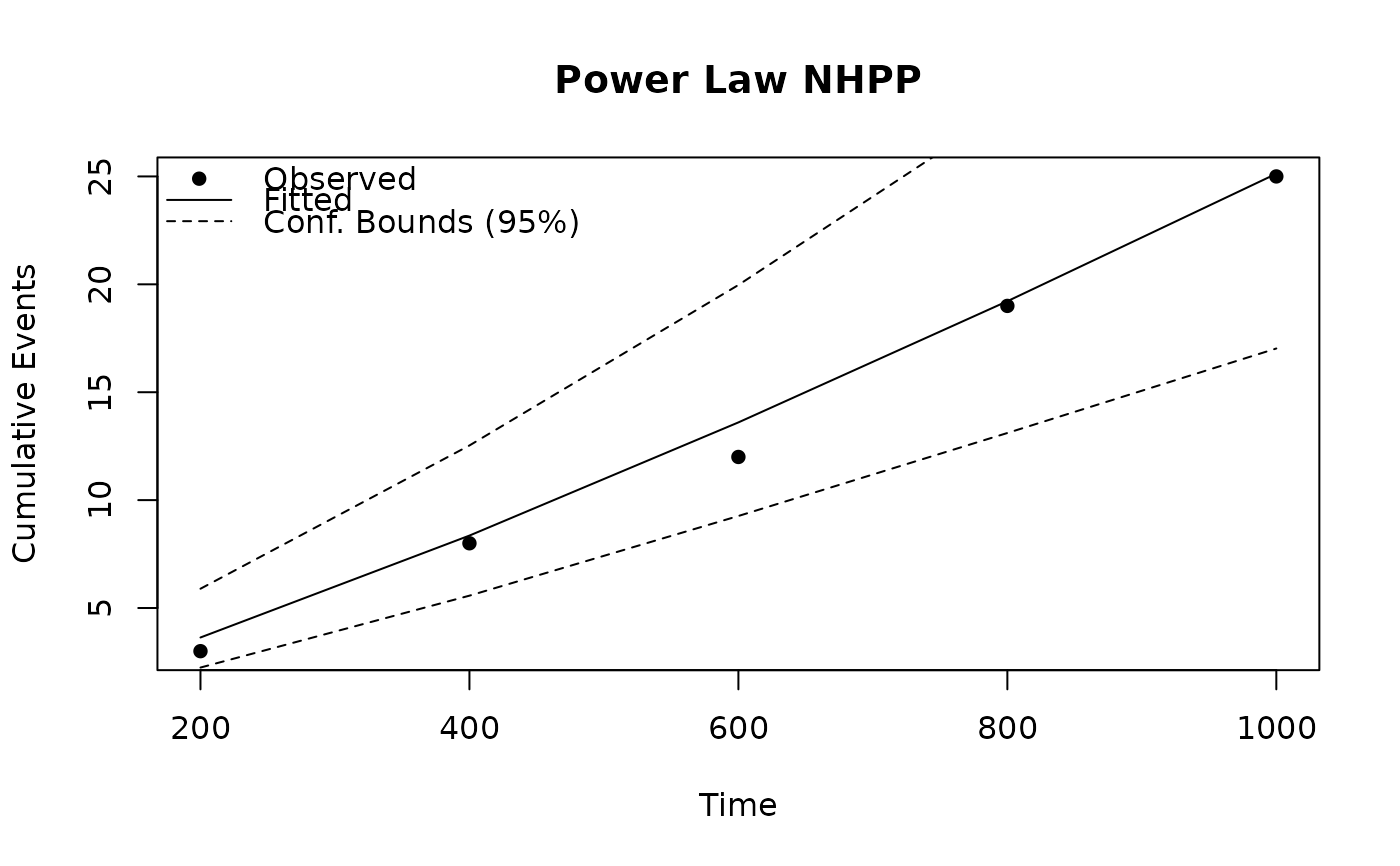

plot(result, main = "Power Law NHPP", xlab = "Time", ylab = "Cumulative Events")
