Plot Method for mcf Objects. — plot.mcf • ReliaGrowR

Plots the Mean Cumulative Function with optional confidence bounds.

Usage

# S3 method for class 'mcf'
plot(x, conf_bounds = TRUE, legend = TRUE, legend_pos = "topleft", ...)

Arguments

x: An object of class mcf.
conf_bounds: Logical; include confidence bounds (default: TRUE).
legend: Logical; show the legend (default: TRUE).
legend_pos: Position of the legend (default: "topleft").
...: Additional arguments passed to plot().

Value

Invisibly returns NULL.

See also

Other Repairable Systems Analysis: exposure(), mcf(), nhpp(), overlay_nhpp(), plot.exposure(), plot.nhpp(), plot.nhpp_predict(), predict_nhpp(), print.exposure(), print.mcf(), print.nhpp(), print.nhpp_predict()

Examples

id <- c(1, 1, 1, 2, 2, 3, 3, 3, 3)
time <- c(100, 300, 500, 150, 400, 50, 200, 350, 600)
result <- mcf(id, time)

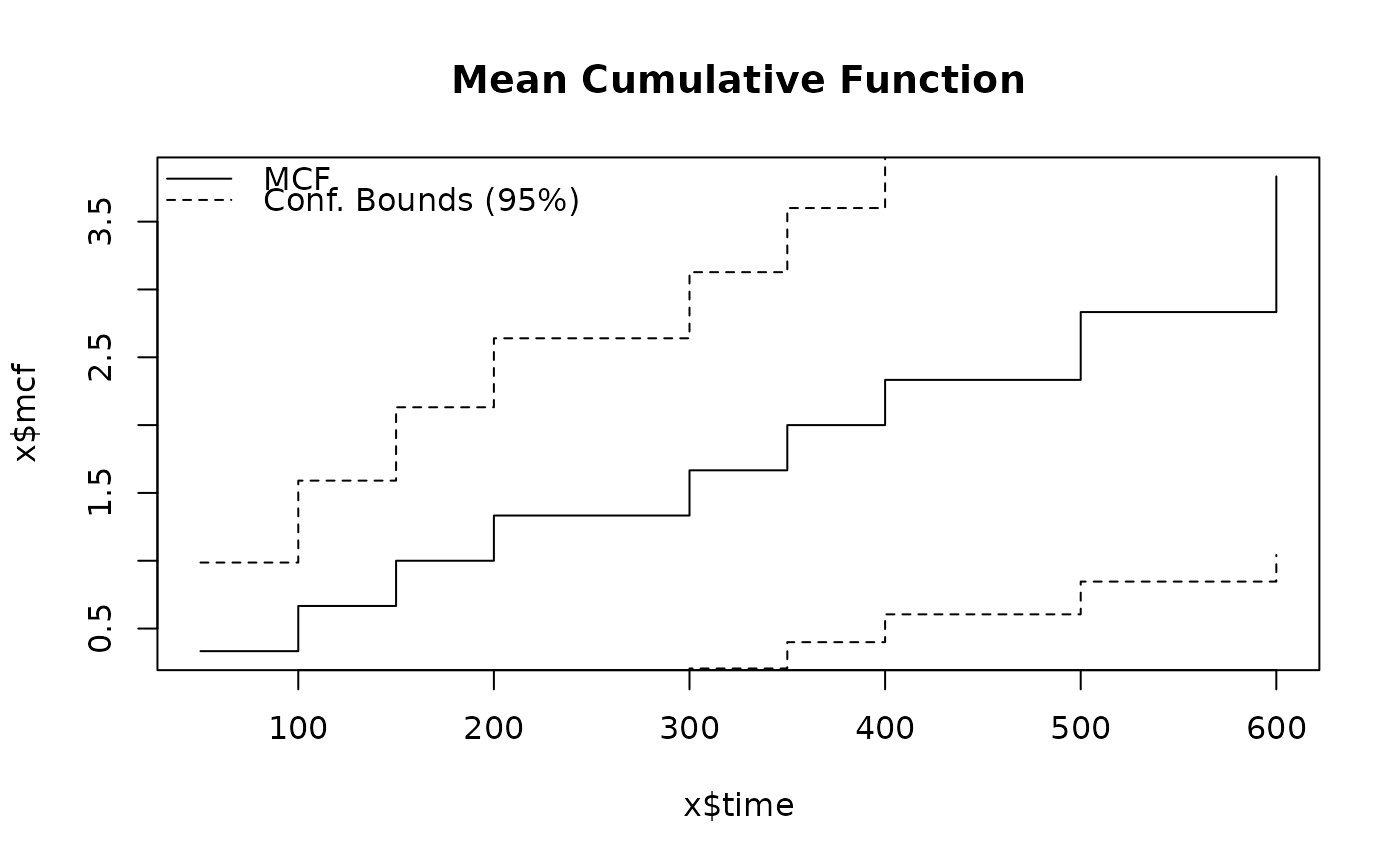

plot(result, main = "Mean Cumulative Function")
