PRA: Project Risk Analysis

Key features:

  • Second Moment Analysis
  • Monte Carlo Simulation
  • Contingency Analysis
  • Sensitivity Analysis
  • Earned Value Management
  • Learning Curves
  • Design Structure Matrices

Installation

To install the release verion of PRA, use:

install_packages('PRA')

You can install the development version of PRA like so:

devtools::install_github('paulgovan/PRA')

Usage

Here is a basic example which shows you how to solve a common problem using Monte Carlo Simulation.

First, load the package:

Next, set the number of simulations and describe probability distributions for 3 work packages:

num_simulations <- 10000
task_distributions <- list(
  list(type = "normal", mean = 10, sd = 2),  # Task A: Normal distribution
  list(type = "triangular", a = 5, b = 10, c = 15),  # Task B: Triangular distribution
  list(type = "uniform", min = 8, max = 12)  # Task C: Uniform distribution
)

Then, set the correlation matrix between the 3 work packages:

correlation_matrix <- matrix(c(
  1, 0.5, 0.3,
  0.5, 1, 0.4,
  0.3, 0.4, 1
), nrow = 3, byrow = TRUE)

Finally, run the simulation using the mcs function:

results <- mcs(num_simulations, task_distributions, correlation_matrix)

To calculate the mean of the total duration:

cat("Mean Total Duration is ", round(results$total_mean, 2))

Mean Total Duration is 38.65

To calculate the variance of the total duration:

cat("Variance around the Total Duration is ", round(results$total_variance, 2))

Variance around the Total Duration is 19.79

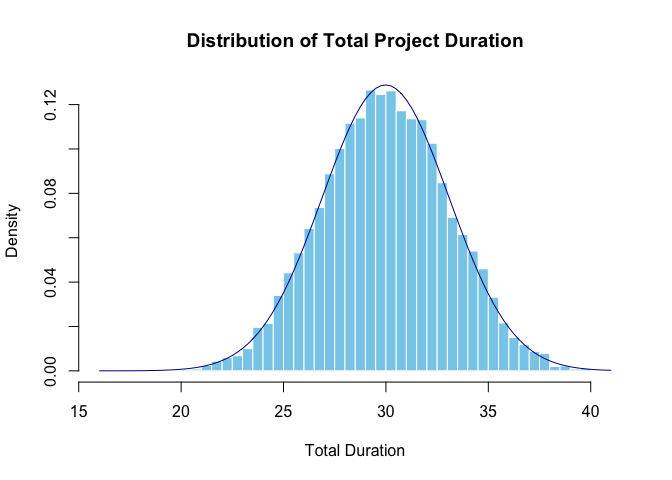

To build a histogram of the total duration:

hist(results$total_distribution, breaks = 50, main = "Distribution of Total Project Duration",
     xlab = "Total Duration", col = "skyblue", border = "white")

More Resources

Much of this package is based on the book Data Analysis for Engineering and Project Risk Managment by Ivan Damnjanovic and Ken Reinschmidt and comes highly recommended.
