Plots observed MTBF, fitted Duane curve, and forecast with optional confidence
bounds for a duane_predict object.
Usage
# S3 method for class 'duane_predict'
plot(x, conf_bounds = TRUE, legend = TRUE, legend_pos = "topleft", ...)Arguments
- x
An object of class
duane_predict.- conf_bounds
Logical; include confidence bounds (default:
TRUE).- legend
Logical; show the legend (default:
TRUE).- legend_pos
Position of the legend (default:
"topleft").- ...
Additional arguments passed to
plot().
See also
Other Duane functions:
duane(),
plot.duane(),
predict_duane(),
print.duane(),
print.duane_predict()
Examples
times <- c(100, 200, 300, 400, 500)
failures <- c(1, 2, 1, 3, 2)
fit <- duane(times, failures)
fc <- predict_duane(fit, times = c(1000, 2000))
#> Warning: Some 'times' values are <= the maximum observed cumulative time. Hindcasting is allowed but may not be meaningful.

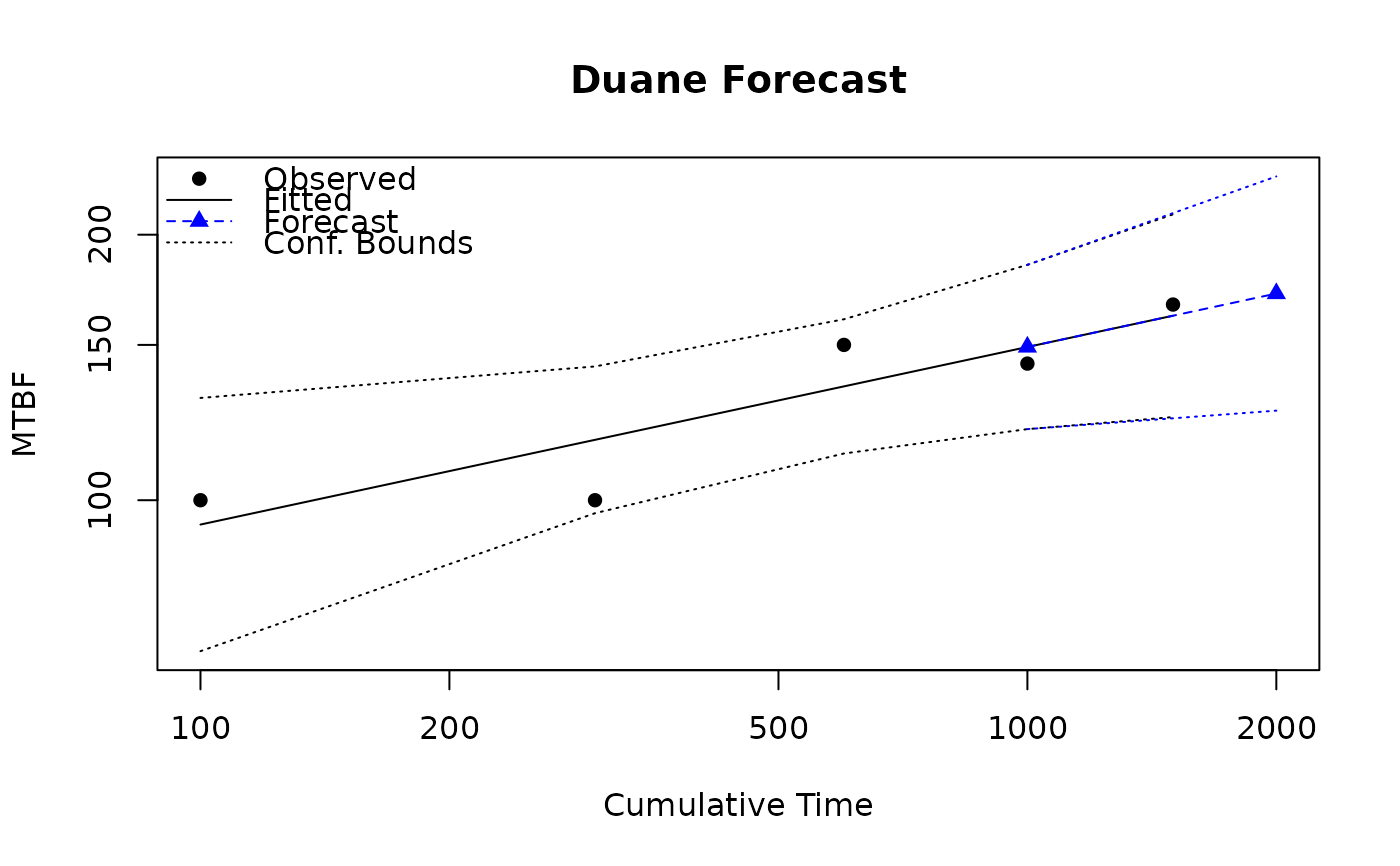

plot(fc, main = "Duane Forecast", xlab = "Cumulative Time", ylab = "MTBF")
